    Vertical Flow Laminar Clean Bench For Scientific Research Laboratory

    Ask Lasest Price
    Brand Name : YN
    Model Number : YN-CB1440
    Certification : CE/ISO
    Price : Reconsideration
    Payment Terms : T/T, Western Union, , L/C, D/A
    Supply Ability : 2000pcs/month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

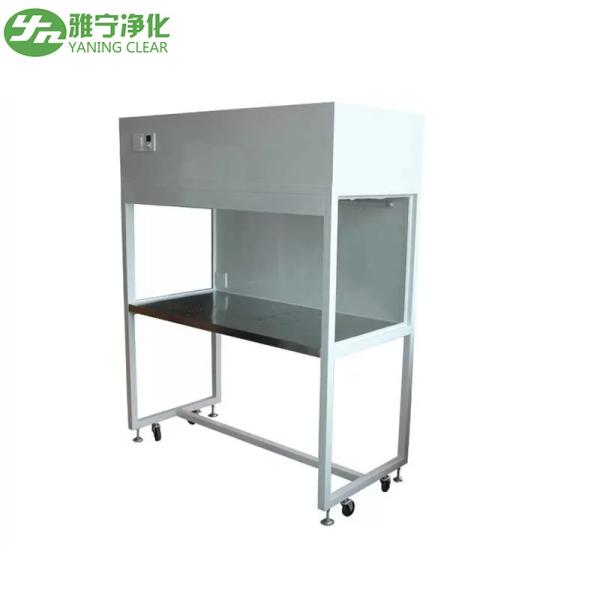

    Vertical Flow Laminar Clean Bench For Scientific Research Laboratory

    Cost-effective vertical laminar air flow clean workbench for clean area


    Product Information:

    The clean workbench consists of chassis, HEPA filter, variable air supply fan filter unit, medium-efficiency filter, worktable surface, and anti-static ion gun. The chassis is made of sheet steel and painted on the surface. Work area countertops are all stainless steel and the table tops are removable for easy cleaning.
    The workbench adopts a direct control method, which includes a fan switch, a light switch, an anti-static ion switch, and a direct control device.


    Performance Features:

    1) Provide an operating environment with a cleanliness class of 100, with dust ≤ 3.5 μm and ≤ 3.5 particles/liter
    2) Horizontal laminar flow type or vertical laminar flow type
    3) Ultra-thin high-performance air filter without partitions, taking up less space
    4 With touch-type electronic control panel, fan air flow can be adjusted steplessly to ensure that the wind speed in the work area is always in an ideal state.
    5) stainless steel worktable, plexiglass enclosure, can be equipped with UV remote control electrical interface


    Clean workbench parameter

    ModelYN-V680YN-V800YN-DDCYN-SDCYN-SDC2100
    External Size (W*D*H), mm680*410*1160802*615*15751040*600*17301440*600*17302100*740*2550
    Internal Size (W*D*H), mm630*375*615800*600*540940*580*5401340*580*5402000*705*1100
    Work Surface HeightNo660mm730mm730mm730mm
    DisplayLED Display
    Airflow VelocityAverage of 0.3~0.5m/s, air speed adjustable.
    MaterialMain Body: Cold-rolled steel with anti-bacteria powder coating
    Work Table: 304 stainless steel
    Pre-filterPolyester fiber, washable
    HEPA Filter99.999% efficiency at 0.3um
    Noise<60dB
    Front WindowNoManual, 5mm toughened glass, anti-UVMotorized, 8mm PMMA
    Max OpeningNo490mm350mm400mm
    Fluorescent Lamp14*114W*121W*128W*136W*1
    UV LampEmission of 253.7 nanometers
    Consumption160W350W350W600W700W
    Waterproof Socket2, total load≤500WNo
    CasterNoUniversal wheel with leveling feet
    Power Supply110/220V±10%; 60/50Hz
    Standard Accessory

    Fluorescent lamp, UV lamp*2 ( for all models )

    Water & gas tap ( for model BBS-V680 )

    Base stand ( except model BBS-V680 )

    Foot switch and Waterproof socket*2 ( for model BBS-SDC2100 )

    Gross Weight50kg120kg150kg210kg300kg
    Package Size (W*D*H), mm750*460*1170960*770*18001200*780*13501600*780*13502250*1000*2120

    Clean workbench application:
    It is widely used in medical and health, pharmacy, biochemical experiment, electronic, precision instrument, instrument and other industries, and provides a sterile clean environment for local purification table.

    Use environment and conditions:

    Temperature: 5°C∽35°C;
    Relative humidity: no more than 85% (+35°C);
    Pressure: 86kPa∽106 kPa;
    The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);
