    Class 100 Clean Room Laminar Flow Clean Benches , Laminar Flow Biological Safety Cabinet

    Ask Lasest Price
    Brand Name : YN
    Model Number : YN-CB960
    Certification : CE/ISO
    Price : Reconsideration
    Payment Terms : T/T, Western Union, , L/C, D/A
    Supply Ability : 2000pcs/month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

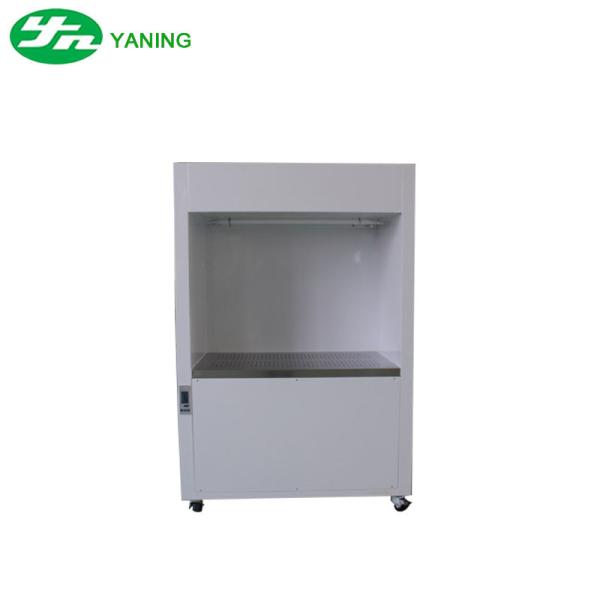

    Class 100 Clean Room Laminar Flow Clean Benches , Laminar Flow Biological Safety Cabinet

    Vertical flow single person clean bench class 100 for clean room


    1. Clean bench description:


    Product Information:

    The clean bench consists of chassis, HEPA filter, variable air supply fan filter unit, medium-efficiency filter, worktable surface, and anti-static ion gun. The chassis is made of sheet steel and painted on the surface. Work area countertops are all stainless steel and the table tops are removable for easy cleaning.
    The workbench adopts a direct control method, which includes a fan switch, a light switch, an anti-static ion switch, and a direct control device.


    Performance Features:

    Clean bench class 100 designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100. Whole cabinet made of Cold Rolled steel powder coated. The work table is made of thick Stainless-steel (SUS304 T=1.0mm). Extra charge is applied for full SUS304 body.

    The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron


    2.Clean bench parameter


    SPECIFICATIONS FOR LAMINAR FLOW CABINET
    Itemsingle horizontal typedouble horizontal typedouble vertical type
    Size960*750*1580 mm1200*820*15801500*700*1800
    Class levelclass 100 @0.3 um(FED 209)
    Rated air volume1200m3/h1800m3/h2300m3/h
    Air velocity0.3-0.6 m/s
    Filter Efficiency99.999%@ 0.3um H13,H14
    Power280W405W490W
    Noise65dB
    Power Supply220V/50Hz

    Customized design is welcome.


    3.Clean bench class 100 application:


    Microelectronics, laboratories, national defense, precision instruments, meters, bio -pharmaceuticals, optoelectronics, hard disk manufacturing.Etc.

    4.Use environment and conditions:


    Temperature: 5°C∽35°C;
    Relative humidity: no more than 85% (+35°C);
    Pressure: 86kPa∽106 kPa;
    The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);

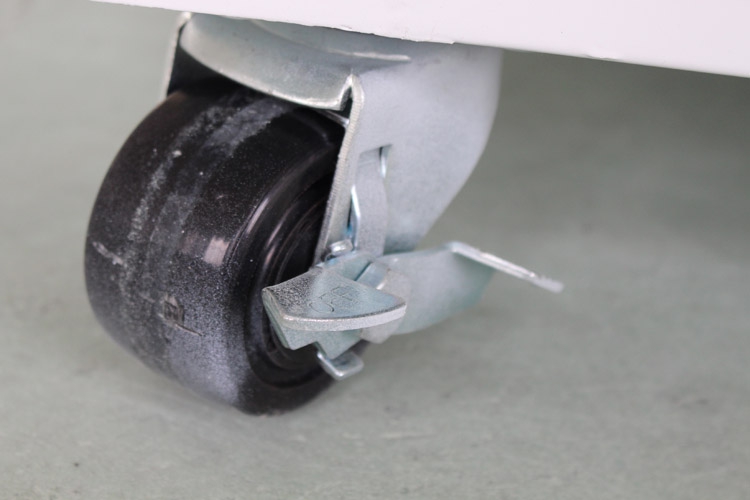

    Production detail photos


    Packaging
    Size1000*800*1650mm
    Weight150kg

    Packaging Details

    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

    Shipping
    itemby air or by sea
    time7-30 days

    Shipping Details

    1. Samples be shipped by DHL/FedEx/UPS and so on.
    2. Mass production be shipping by Air or Sea.
