    Hepa Filtration Clean Room Fan Filter Units Powder Coat Steel Material 12 Months Warranty

    Ask Lasest Price
    Brand Name : Yaning
    Model Number : 1175*575*290mm
    Certification : CE& ISO
    Price : discussion
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

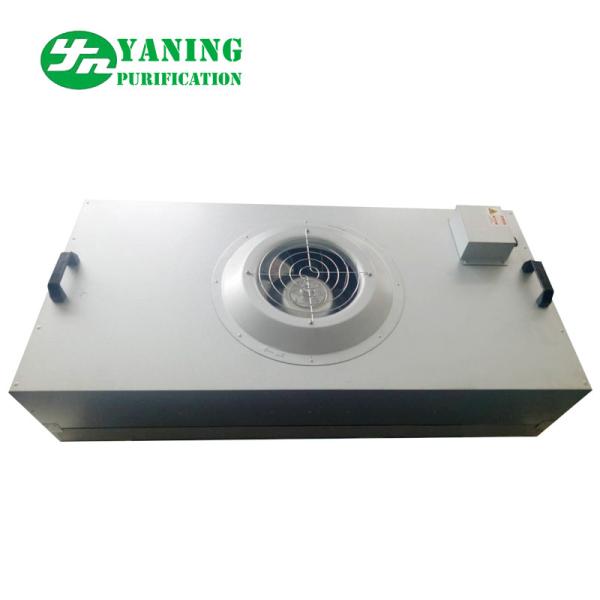

    Hepa Filtration Clean Room Fan Filter Units Powder Coat Steel Material 12 Months Warranty


    Hepa filtration units fan coil filter fan filter unit for clean room


    Introduction:

    FFU, short for Fan Filter Unit, is a kind of air supply device that has motive power and filtering function. Air is brought in top of FFU as passing through HEPA Filters, filtered air comes out of outlet evenly; Modules connection running.

    FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25% to100% cover rate), general dimension is 2'*4' or 4'*4'.

    Application: Applying in class 10000 to class 10 of clean room, even forming ultra clean line, clean closet and etc.

    1. Nice appearance, human centered design
    Add Stainless handle, easy installation and delivery, perpendicular design;
    2. High performance and low noise fans
    Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours;
    3. Light, thin shape
    Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available;
    4. Flexible, diversified design
    Except for standard items, custom made is available, such as choosing kinds of filter net and materials of shell;
    5. Concerning, convenient design
    Pedals are designed in the body, which makes it convenient to install and repair;
    6. Premium Current-averaging design of the inside
    Ensures deviation of the blowing side lower than ± 10%.


    Features :

    1. A 3 - section or variable speed airfoil turbo fan made by aluminum alloy, which pursued the most suitable designed by computer analysis, provides high efficiency and low-noise characteristics.
    2. A carrying handle makes transportation and installation easier.
    3. A safety socket block for connecting electric power is most suitable for a small clean room system.
    4. An optional ULPA filter, which is 99.9999% efficiency at 0.12 microns, is available to meet the extremely critical clean area needs.


    ModelYN-FFU-575YN-FFU-1175YN-FFU-1225YN-FFU-1175×2
    Cabinet Size575×875×230575×1175×230615×1225×2301175×1175×230
    Cabinet MaterialEpoxy powder coated steel/Galvanized steel with aluminum painted/Stainless steel
    Air Flow(m3/h)800110012002000
    Noise(dB)56565858
    Air Velocity0.3~0.5m/s0.3~0.5m/s0.3~0.5m/s0.3~0.5m/s
    HEPA FilterSize570×870×69570×1170×69610×1220×691170×1170×230
    Efficiency99.995%0.3µm99.995%0.3µm99.995%0.3µm99.995%0.3µm
    FrameAluminum
    Initial pressure loss220pa/0.45m/s220pa/0.45m/s220pa/0.45m/s220pa/0.45m/s
    FanPower Supply220V/50hz220V/50hz220V/50hz220V/50hz
    TypeAluminum turbofan
    Vibration0.2~0.5mm/s0.2~0.5mm/s0.2~0.5mm/s0.2~0.5mm/s
    Total Power170W170W210W275W
    Weight24kg28kg31kg47kg
