    YANING HEPA Filter Fan Filter Unit Laminar Air Flow FFU for Lab Mushroom

    Ask Lasest Price
    Brand Name : YANING
    Model Number : YN-FFU-1175
    Certification : CE ISO SGS
    Price : Reconsideration USD360-400 Set
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 100 units/Week
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    YANING HEPA Filter Fan Filter Unit Laminar Air Flow FFU for Lab Mushroom

    YANING HEPA Filter Fan Filter Unit Laminar Air Flow FFU for Lab Mushroom



    Product Description

    ①The Fan Filter Unit is a self-powered air supply filter device, that can be mounted on a ceiling or placed on a stand to achieve a local cleanness level of 100.It consists of a high-performance fan, a cabinet and a HEPA filter.The air is sucked in from the top and filtered by HEPA, and the filtered clean air is evenly sent out at a speed of about 0.45m/s±20% on the entire air outlet surface. YANING FFU has low power consumption and low noise, uniform wind pressure diffusion, uniform and stable wind speed on the air outlet, and have a working life of more than 50,000 hours.


    ②FFU is abbreviation of Fan Filter Unit. It is a modular terminal air supply device with its own power and filtering effect. Its main function is to inhale the air from the top of the FFU by the fan and filter it by HEPA, and the filtered clean air is evenly sent out at the air velocity of 0.45m/s+20% on the entire air outlet surface to meet the cleanliness requirements of the clean environment. It is mainly installed on ceiling keels and equipment machines in clean areas and working areas. It is widely used in semiconductors, optical electronics, precision instruments, biopharmaceuticals, aerospace, and automobiles, hospitals, food, spraying, printing and other fields.


    Product Parameter

    Product NameAC FFU
    Product ModelYN-FFU-A01YN-FFU-A02YN-FFU-A03YN-FFU-A04
    Dimension(mm)575x575x220575x1175x220875x1175x2751175x1175x295
    Filter Dimension(mm)570x570x69570x1170x69870x1170x691170x1170x69
    Air Volume500m³/h1000m³/h1500m³/h2000m³/h
    Noise52~62dB(A)52~62dB(A)52~62dB(A)52~62dB(A)
    Air Pressure200PA200PA260PA290PA
    Power170W170W200W240W
    Weight28Kg35Kg47Kg55Kg
    MaterialGalvanized/powder coated/SUS 304 plate
    Supply PowerAC 1N 110, 220V/50,60Hz
    Control System3 stage regulation, group reguation
    Filter Efficiency99.95%MPPS above H13-U16@EN1822
    Pre FilterG3/G4 Filter, nylon filter
    Work Statuspower Indicator, work indicator, Error indicator
    Connection Type3 Pin Aviation Male Female socket, terminat blocks
    Overload ProtectionOverload protect of motor and controller
    Monitor Contact
    Communication Method
    port of reserve and Erro

    Product NameEC FFU
    Product ModelYN-FFU-E01YN-FFU-E02YN-FFU-E03YN-FFU-E04
    Dimension(mm)575x575x275575x1175x275875x1175x3051175x1175x305
    Filter Dimension(mm)570x570x69570x1170x69870x1170x691170x1170x69
    Air Volume500m³/h1000m³/h1500m³/h2000m³/h
    Noise48~54dB(A)48~54dB(A)52~58dB(A)52~58dB(A)
    Air Pressure210PA210PA280PA280PA
    Power60W90W140W160W
    Weight28Kg35Kg47Kg55Kg
    MaterialGalvanized/powder coated/SUS 304 plate
    Supply PowerAC 1N 220V/50,60Hz
    Control SystemManual stepless regulation; PC group regulation
    Filter Efficiency99.95%MPPS above H13-U16@EN1822
    Pre FilterG3/G4 Filter, nylon filter
    Work StatusWork indication; Error indication
    Connection TypeTerminal Bolcks
    Overload ProtectionOverload protect of motor and controller
    Monitor Contact
    Communication Method
    R485 TCP

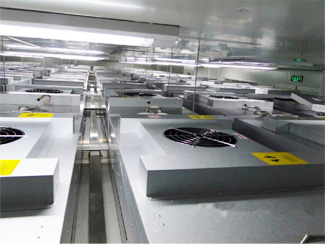

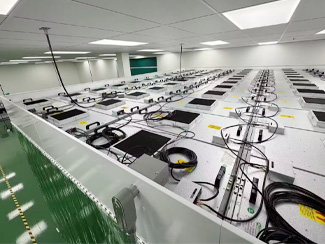

    Success case show
