    Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency

    Ask Lasest Price
    Brand Name : YaNing
    Model Number : YN-HB
    Certification : CE
    Price : 150 USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 per month
    Delivery Time : 7 - 10 days
    • Product Details
    • Company Profile

    Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency

    Product Description

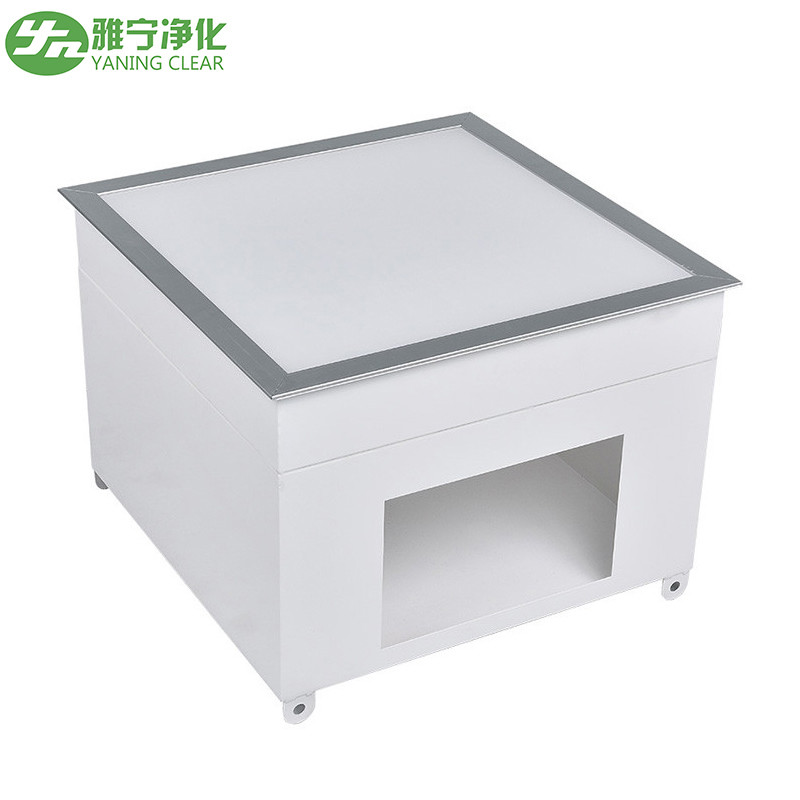

    1. Hepa filter box description

    HEPA diffuser, HEPA filter diffuser box, HEPA filter box
    HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.

    It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
    These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy current from happening; great appearance; less investment; simple structure.

    It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.

    Therefore, it is especially suitable to apply in industries such as micro-electronics, research, precision machinery, medical care, biochemistry and pharmacy etc.

    2. Hepa filter box advantages

    1).Filter material:glassfiber
    2).Frame:Aluminum profile
    3).Efficiency:more than99.99%


    Class 100 Purification Customizable Hepa Filter Box with 99.995% Filter Efficiency

    3. Standard Model Technology Parameter

    Mini-Pleated

    HEPA filter

    Model

    Cabinet Size

    Filter SizeFlange Size

    (m3/h)

    Rated Air flow

    Tube on topTube on side
    YN-HU-484-T1YN-HU-484-S1534×534×380484×484×96320*2001000
    YN-HU-610-T1YN-HU-610-S1660×660×380610×610×96400*2001500
    YN-HU-915-T1YN-HU-915-S1915×610×380915×610×96500*2002000
    YN-HU-1220-T1YN-HU-1220-S11220×610×3801220×610×96500*3003000

    HEPA filter

    with Clapboard

    ModelCabinet SizeFilter SizeFlange Size

    (m3/h)

    Rated Air flow

    Tube on topTube on side
    YN-HU-484-T2YN-HU-484-S2534×534×380484×484×220320*2001000
    YN-HU-610-T2YN-HU-610-S2660×660×380610×610×220400*2001500
    YN-HU-915-T2YN-HU-915-S2915×610×500915×610×220500*2002000
    YN-HU-1220-T2YN-HU-1220-S21220×610×5001220×610×220500*3003000

    Customized design is welcome.
